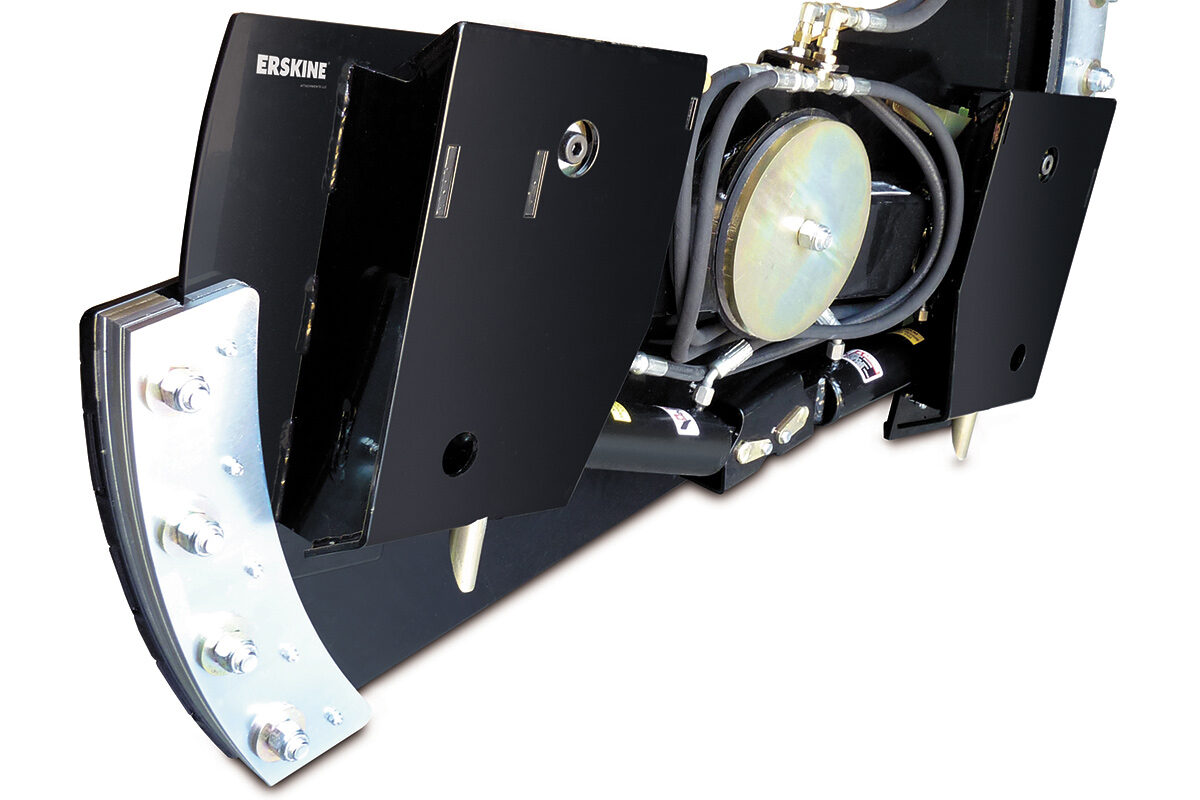

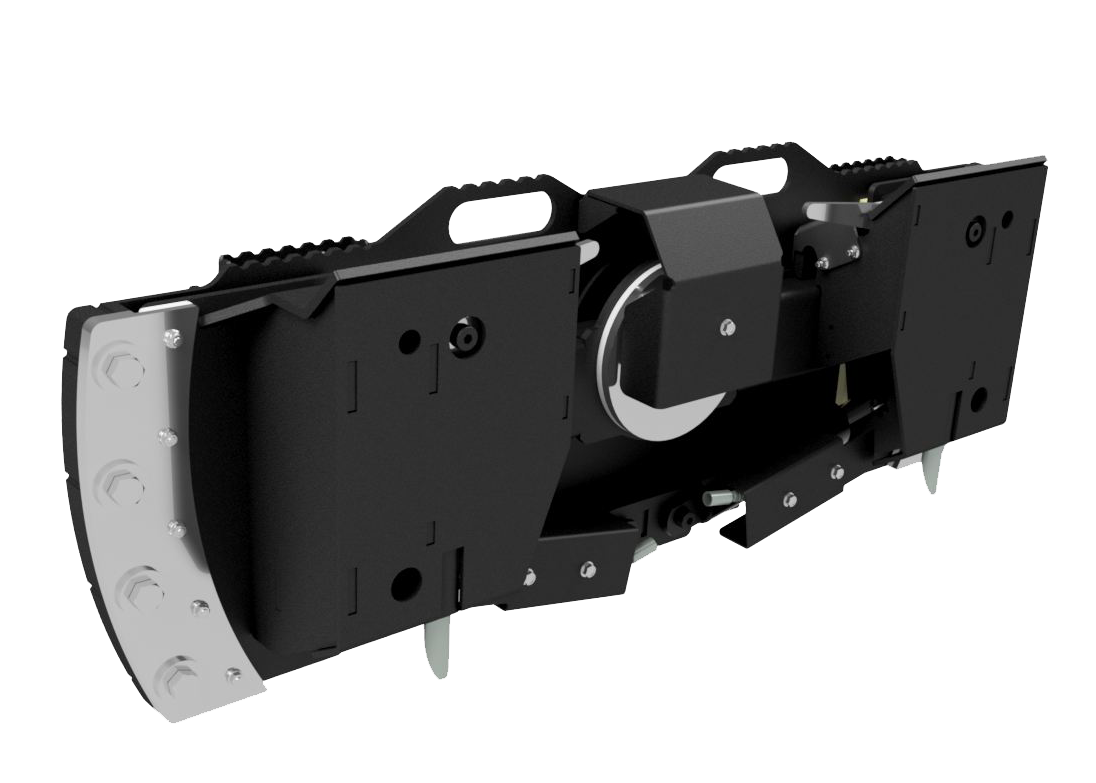

The Tilt Attachment mounts between a skid steer’s quick attach and attachment to add precise tilting control from the operator’s seat. It allows operators to cut grades, ditches, and swales, and keep attachments level on uneven or hilly terrain. Designed for stability and accuracy, it delivers smooth, controlled tilting that supports precision work and machine control applications.
- Tilts up to 17° left or right with equal speed and control in both directions
- Large 5" center bushing provides stability and durability
- Dual hydraulic cylinders deliver smooth operation and strong tilting force
- Ideal for machine control systems using laser or sonic guidance
- Low-maintenance wear surfaces eliminate the need for greasing
- Heavy-duty construction built for demanding grading applications
PRODUCT OVERVIEW
Large 5" Center Bushing
Large 5" center bushing provides added strength and lateral stability for accurate, controlled tilting.
17° Bi-Directional Tilt
Rotates left or right up to 17° from the skid steer’s centerline, delivering equal speed and consistent performance in both directions.
Dual Cylinder Design
Dual hydraulic cylinders provide smooth operation and superior tilting force for precise attachment control.
Machine Control Ready
Designed for machine control applications using laser or sonic-guided systems where accuracy is critical.
Low-Maintenance Wear Points
Replaceable nylon wear material eliminates the need for grease, reducing maintenance time and operating costs.
Heavy-Duty Construction
Built with robust materials and solid engineering to handle demanding grading and leveling tasks day after day.
